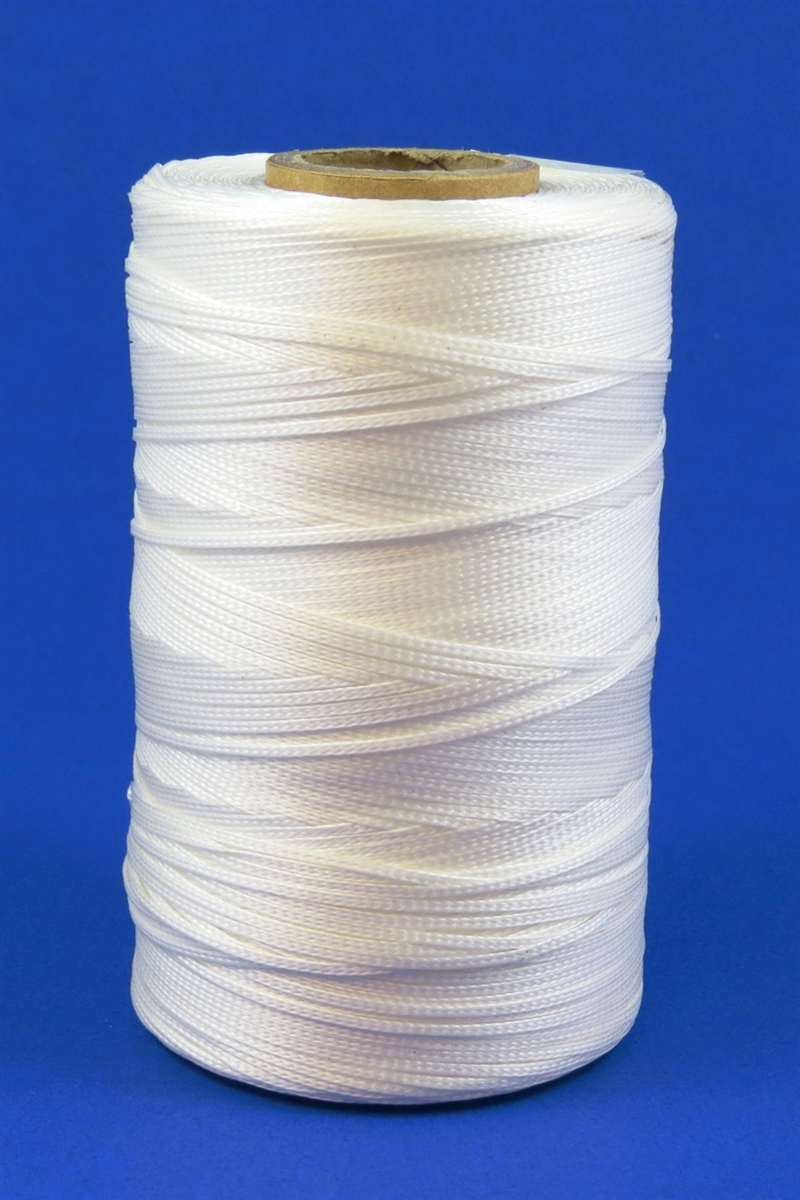

Breyden 60 Series DHS Heat-Shrinkable Polyester Tie Cord
The
Breyden 60 Series DHS Tie Cord (DHS 4CL) is a premium, flat-braided, heat-shrinkable lacing tape engineered specifically for securing the delicate end turns of stators in compact electric motor and generator manufacturing. Formulated from high-tenacity continuous filament polyester, it features a specialized finish that dramatically reduces fraying and enhances knot-holding capabilities during precise installation.
During the varnish baking cycle, this fine-gauge tape shrinks by approximately 10% when exposed to 350°F, creating an ultra-tight, reliable hold that prevents any shifting or loosening of the windings. Rated for Class F applications (up to 155°C), it integrates seamlessly with electrical varnishes and potting resins for a unified insulation bond.
Technical Specifications:
|
Property
|
Specification / Value
|
|
Manufacturer
|
Breyden Products, LLC
|
|
Part Number / Series
|
60 (DHS 4CL)
|
|
Material
|
100% High-Tenacity Continuous Filament Industrial Polyester Fiber
|
|
Nominal Width
|
0.060" (Range: .056" - .068")
|
|
Thickness Range
|
.009" - .015"
|
|
Minimum Tensile Strength
|
35 LBS.
|
|
Shrinkage Percentage
|
10% (Plus or Minus 2%) @ 350°F
|
|
Thermal Insulation Class
|
Class F (Up to 155°C)
|
|
Standard Put-up
|
500 Yards per spool (Other put-ups available)
|
|
Standard Color(s)
|
Natural
|
|
Certifications & Compliance
|
Complies with U.L. test sample BPCCT155
|
Product Data Sheet
Breyden Products, LLC
4532 E. Park 30 Drive
Columbia City, IN 46725
Phone: 260-244-2995
Product and Description
|
Part Number:
|
60-1
|
|
Description:
|
Flat braided tape manufactured from 100% high tenacity continuous filament industrial polyester fiber. This material is intended for use in applications requiring heat resistance to 155 degrees C. The tape is heat shrinkable.
|
|
Additional Information:
|
This tape is untreated. This tape is designed for lacing end turns of stators. Complies with U.L. test sample BPCCT155.
|
Attributes
|
Width:
|
.056" - .068"
|
|
Thickness:
|
.009" .015"
|
|
Tensile Strength (Minimum):
|
35 LBS.
|
|
Standard Package:
|
500 Yards
|
|
Standard Color(s):
|
Natural
|
|
Shrinkage:
|
10% (Plus or Minus 2%) @ 350 Degrees F.
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Applications
Primary Product Applications
The Breyden 60 Series Tie Cord is uniquely engineered to provide high thermal stability and physical restraint for small, high-precision electrical systems. Key applications include:
- Precision Stator Rewinding: Specifically designed for bundling and securing fine end turns of stators in micro-to-midsize motors and generators. The 10% thermal shrinkage tightens during the varnish bake cycle to permanently anchor windings and prevent operation-damaging vibration.
- Class F Electrical Assemblies: Ideal for high-temperature coils, transformers, and electronic components requiring reliable, continuous electrical insulation up to 155°C.
- Delicate Wire Harnessing & Cable Lacing: The narrow profile (.056" - .068" width) allows for precise, tight workspaces in modern control panels and custom wire harnesses without adding excessive bulk or damaging fragile wire jackets.
Key Features & Benefits
- 10% Thermal Shrinkage: Automatically contracts by roughly 10% (±2%) when exposed to 350°F during processing, creating an ultra-tight mechanical lock that traditional tie cords cannot match.
- High Knot Retention: Treated with a specially formulated finish that improves knot-holding security and eliminates frustrating slipping or unraveling during high-tension manual tying.
- Class F Temperature Rating: Built from premium high-tenacity continuous filament polyester, ensuring reliable, continuous performance in demanding thermal environments up to 155°C.
- Excellent Resin Compatibility: Integrates seamlessly with standard electrical varnishes and potting compounds to form a rugged, unified insulation bond around coils.
- Indefinite Shelf Life: Designed for long-term storage stability without material degradation, ensuring the cord retains its full tensile strength and shrinking properties until needed.
|
|
|
|
|
|
|
