DHS 00CL Heat- Shrinkable Flat Braided Polyester Tie Cord - Breyden 500
DHS 00CL Heat- Shrinkable Flat Braided Polyester Tie Cord - Breyden 500

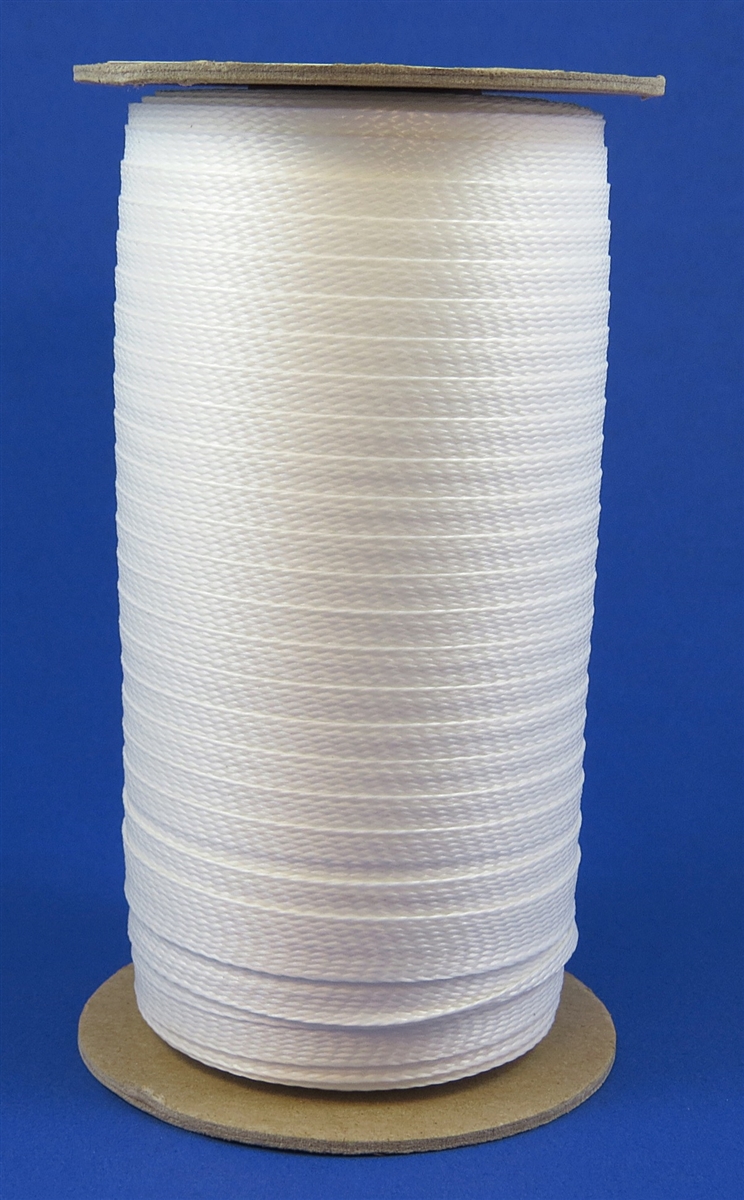

TIE CORD DHS-00CL .500 X 250 FT ROLL
Breyden 500 NAT
Our Price: $32.75

Quantity in Stock:98

Product Code: TIEDHS00CL
Qty:

Description Technical Specs Data Sheet


Breyden 500 Series DHS Heat-Shrinkable Polyester Tie Cord

The Breyden 500 Series DHS Tie Cord is an ultra-heavy-duty, flat-braided, heat-shrinkable lacing tape engineered specifically for securing the large end turns of stators in high-capacity electric motor and generator manufacturing. Formulated from premium high-tenacity continuous filament polyester, it features a specialized finish that dramatically reduces fraying and enhances knot-holding capabilities during high-tension installation.

During the varnish baking cycle, this heavy-duty tape shrinks by approximately 10% when exposed to 350°F, creating an incredibly tight, reliable mechanical lock that prevents any shifting, vibration, or loosening of large windings. Rated for Class F applications (up to 155°C), it integrates seamlessly with electrical varnishes and potting resins for a unified, permanent insulation bond.

Applications

Primary Product Applications

The Breyden 500 Series Tie Cord is engineered to deliver high physical strength and excellent thermal stability in demanding electrical applications. Key applications include:

  • Electric Motor Stator Manufacturing: Specifically designed for lacing the end turns of stators. Its 10% thermal shrinkage capabilities allow the cord to tighten under heat exposure 350°, locking motor components tightly into place.
  • High-Temperature Insulation Environments: Perfectly suited for electrical equipment and assemblies requiring continuous heat resistance up to 155C.
  • Heavy-Duty Mechanical Tying: The high 600 lbs. minimum tensile strength ensures secure bundling, while the tailored finish optimizes knot retention and prevents slippage during tensioning.

Key Features & Benefits:

  • Maximum Tie Strength: Offers a massive minimum 600 lbs breaking strength designed for large-scale industrial motor assemblies.
  • Heat Shrink Performance: Shrinks roughly 10% at 350°F to provide ultimate post-bake tensioning on heavy copper windings.
  • Anti-Fray Coating: Custom-formulated finish limits surface snagging and optimizes knot retention under extreme load.
  • UL Certified: Component covered and verified under Breyden Products UL sample tracking BPCCT155.
