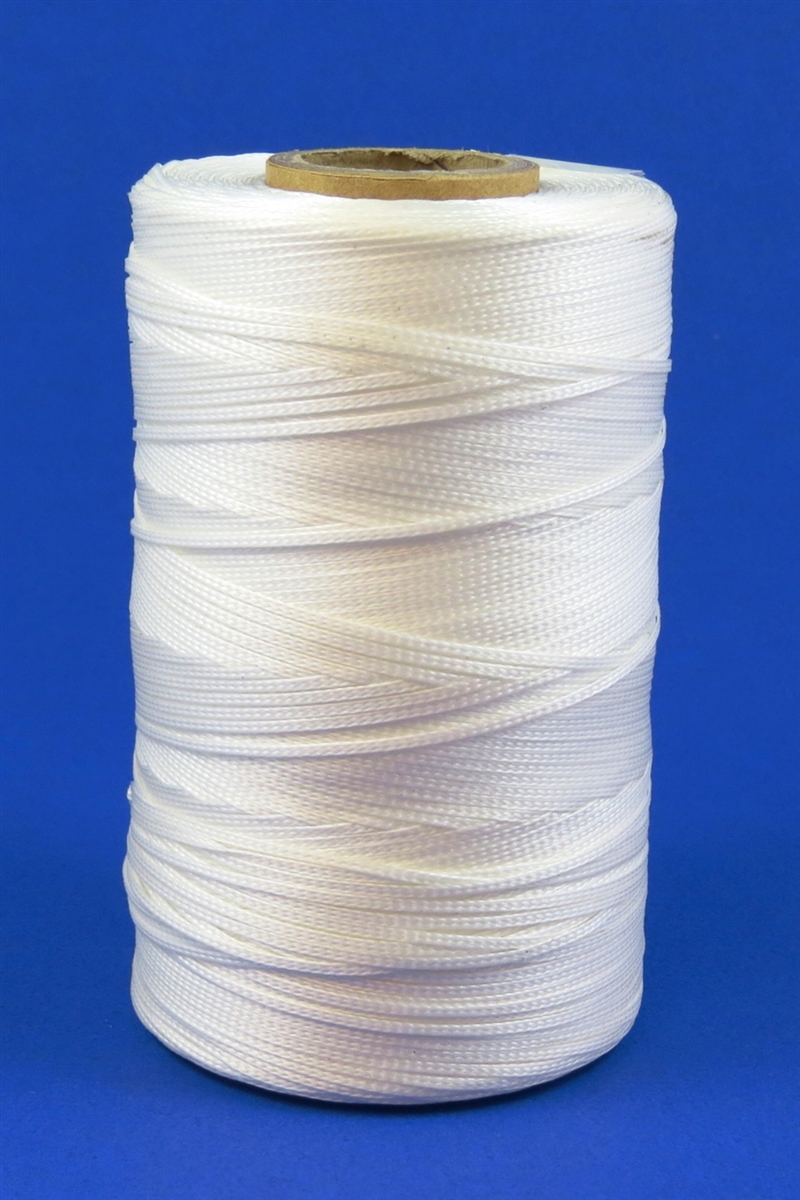

Breyden 75 Series DHS Heat-Shrinkable Polyester Tie Cord
The
Breyden 75 Series DHS Tie Cord is a precision, flat-braided, heat-shrinkable lacing tape engineered specifically for securing the fine end turns of stators in micro-to-midsize electric motor and generator manufacturing. Formulated from premium high-tenacity continuous filament polyester, it features a specialized finish that dramatically reduces fraying and enhances knot-holding capabilities during delicate, high-precision installation.
During the varnish baking cycle, this fine tape shrinks by approximately 10% when exposed to 350°F, creating an incredibly tight, reliable mechanical lock that prevents any shifting, vibration, or loosening of small windings. Rated for Class F applications (up to 155°C), it integrates seamlessly with electrical varnishes and potting resins for a unified, permanent insulation bond.
Technical Specifications:
|
Property
|
Specification / Value
|
|
Material
|
100% High-Tenacity Continuous Filament Polyester
|
|
Nominal Width
|
0.075" (Range: 0.067" - 0.082")
|
|
Thickness Range
|
0.009" - 0.015"
|
|
Minimum Tensile Strength
|
50 lbs.
|
|
Shrinkage Percentage
|
10% (±2%) @ 350°F
|
|
Thermal Insulation Class
|
Class F (Up to 155°C)
|
|
Standard Put-up
|
500 Yards per spool
|
Product Data Sheet
Breyden Products, LLC
4532 E. Park 30 Drive
Columbia City, IN 46725
Phone: 260-244-2995
Product and Description
|
Part Number:
|
75LS
|
|
Description:
|
Flat braided tape manufactured from 100% high tenacity continuous filament industrial polyester fiber. This material is intended for use in applications requiring heat resistance to 155 degrees C. The tape is heat shrinkable.
|
|
Additional Information:
|
This tape is treated with a specially formulated finish that improves knot holding and tying characteristics. This tape is designed for lacing end turns of stators. This tape has less shrinkage than our standard tapes. Complies with U.L. test sample BPCCT155. Other put-ups available.
|
Attributes
|
Width:
|
.067" - .082"
|
|
Thickness:
|
.009" - .015"
|
|
Tensile Strength (Minimum):
|
50 LBS.
|
|
Standard Package:
|
500 Yards
|
|
Standard Color(s):
|
Natural
|
|
Shrinkage:
|
4% (Plus or Minus 2%) @ 350 Degrees F.
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Applications
Primary Product Applications
The Breyden 75 Series Tie Cord is uniquely engineered to provide high thermal stability and physical restraint for small, high-precision electrical systems. Key applications include:
- Precision Stator Rewinding: Specifically designed for bundling and securing fine end turns of stators in micro-to-midsize motors and generators. The 10% thermal shrinkage tightens during the varnish bake cycle to permanently anchor windings and prevent operation-damaging vibration.
- Class F Electrical Assemblies: Ideal for high-temperature coils, transformers, and electronic components requiring reliable, continuous electrical insulation up to 155°C.
- Delicate Wire Harnessing & Cable Lacing: The narrow profile (.067" - .082" width) allows for precise, tight workspaces in modern control panels and custom wire harnesses without adding excessive bulk or damaging fragile wire jackets.
Key Features & Benefits
- 10% Thermal Shrinkage: Automatically contracts by roughly 10% (±2%) when exposed to 350°F during processing, creating an ultra-tight mechanical lock that traditional tie cords cannot match.
- High Knot Retention: Treated with a specially formulated finish that improves knot-holding security and eliminates frustrating slipping or unraveling during high-tension manual tying.
- Class F Temperature Rating: Built from premium high-tenacity continuous filament polyester, ensuring reliable, continuous performance in demanding thermal environments up to 155°C.
- Excellent Resin Compatibility: Integrates seamlessly with standard electrical varnishes and potting compounds to form a rugged, unified insulation bond around coils.
- Indefinite Shelf Life: Designed for long-term storage stability without material degradation, ensuring the cord retains its full tensile strength and shrinking properties until needed.
|
|
|
|
|
|
|
