DHS 1CL Heat- Shrinkable Flat Braided Polyester Tie Cord - Breyden 200
DHS 1CL Heat- Shrinkable Flat Braided Polyester Tie Cord - Breyden 200

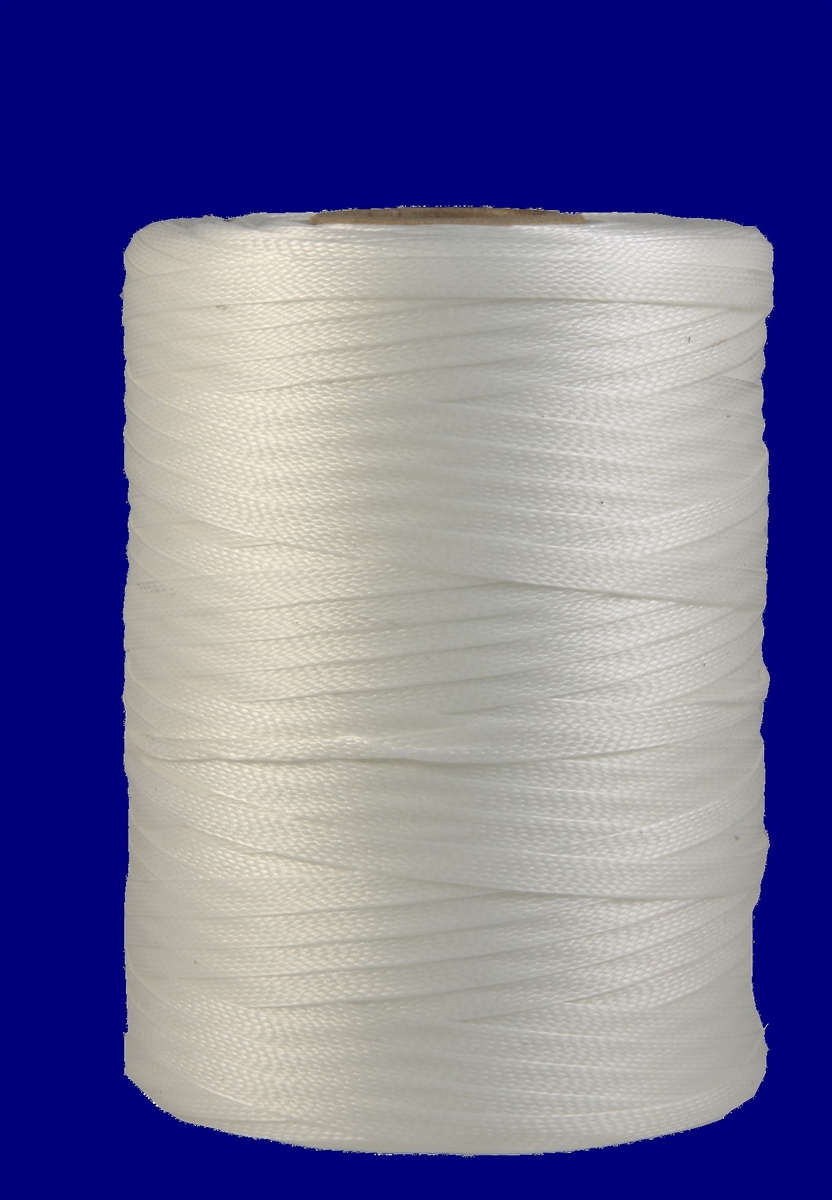

TIE CORD DHS-1CL .225 X 250 YRD ROLL Breyden 200NAT

Our Price: $25.40

Quantity in Stock:69

Product Code: TIEDHS1CL
Qty:

Description Technical Specs Data Sheet


Breyden 200 Series DHS Heat-Shrinkable Polyester Tie Cord

The Breyden 200 Series DHS Tie Cord is a premium, flat-braided, heat-shrinkable lacing tape engineered specifically for securing the end turns of stators in electric motor and generator manufacturing. Formulated from high-tenacity continuous filament polyester, it features a specialized finish that dramatically reduces fraying and enhances knot-holding capabilities during installation.

During the varnish baking cycle, this tape shrinks by approximately 10% when exposed to 350°F, creating an ultra-tight, reliable hold that prevents any shifting or loosening of the windings. Rated for Class F applications (up to 155°C), it integrates seamlessly with electrical varnishes and potting resins for a unified insulation bond.

Applications

Primary Product Applications

The Breyden 200 Series Tie Cord is engineered to deliver reliable physical strength and excellent thermal stability in precision electrical applications. Key applications include:

  • Electric Motor Stator Rewinding: Explicitly designed for lacing the end turns of stators. The 10% thermal shrinkage tightens under heat exposure during the baking cycle to lock windings permanently in place and eliminate operational vibration.
  • High-Temperature Electrical Assemblies: Ideal for wiring components and coil insulation environments requiring continuous thermal protection up to $155 (Class F Insulation).
  • Commercial Wire Harnessing: Used across general electrical, transformer, and cable industries where a flat-profile finish is needed to prevent fraying and maximize knot retention without cutting into wire insulation.
