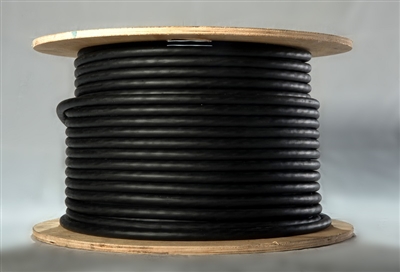

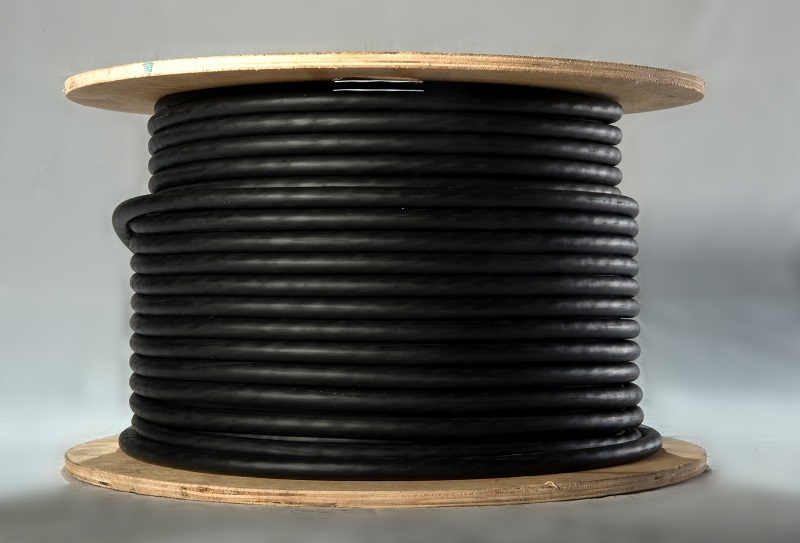

4 AWG. EPDM BLACK
4 AWG. EPDM BLACK

4 AWG EPDM BLACK
100 FT. SPOOL
Our Price: $733.07

Quantity in Stock:2

Product Code: LWEPDM04B
Qty:

Description Technical Specs Data Sheet


Belden EPDM Lead Wire -4 AWG

High-performance EPDM (Ethylene Propylene Diene Monomer) rubber lead wire from Belden. Engineered for superior flexibility and resistance to heat, abrasion, and moisture in demanding industrial environments.

Technical Specifications

AWG Size: 4 AWG
Stranding: 105 X 24
Voltage Rating: 600V (AWM 3340/3374)
Amperage Rating: 192
Temperature Rating: 150°C (No Flex) / 125°C (Flex)
Insulation Material: EPDM Rubber
Conductor Material: Tinned Copper

Key Features

  • High Heat Resistance: Rated for consistent performance up to 150°C.
  • Durability: Excellent resistance to oil, ozone, and abrasion.
  • Compliance: UL AWM Style 3340 & 3374, CSA Type CL1254.
  • Flexibility: Retains pliability in low and high-temperature extremes.
Applications
Single conductor multi stranded flexible hook up wire. EPDM (ethylene-propylene diene elastomer) is a chemically cross-linked elastomer with excellent flexibility at high and low temperatures (150C to -60C). It has good insulation and dielectric strength, as well as excellent abrasion resistance and mechanical properties.
